Biological features of freeze-dried platelet-rich plasma for bony union in spinal fusion surgery


Platelet-rich plasma (PRP) has been reported to accelerate bone union in spinal fusion surgery in a clinical situation as well as a rat experimental model. However, one of the major issues with fresh PRP is its short half-life, of only several hours. To overcome this problem, the use of freeze-dried PRP (FD-PRP) and its efficacy in bone union in vivo and in vitro have been investigated. Using a rat model of spinal posterolateral fusion (PLF) , we showed that the ability of FD-PRP to accelerate bone union is comparable to that of fresh PRP and BMP (human recombinant bone morphogenetic protein 2) . FD-PRP has the ability to remodel the bone with thinner and tangled trabecular bone with confirmed rigidity. In conclusion, FD-PRP has a bone union ability comparable to that of fresh PRP and BMP and thus, together with its safety and more affordable price, could be an adequate alternative to fresh PRP and BMP.


During orthopedic surgery for conditions such as fracture or unstable spinal pathologies, stabilization of unstable segments is one the most important aspects of the treatment strategy. Arthrodesis surgery is one of the most viable options to achieve this stability1-3.

Postoperative bone union can take from a few weeks to 1 year and, occasionally, delayed or inadequate bone union can cause pseudarthrosis, which in turn can lead to adverse outcomes such as chronic instability and pain, resulting in a poor quality of life. Thus, acceleration of postoperative bone union is required for an effective arthrodesis surgery.

Platelet-rich plasma (PRP) is known to accelerate tissue healing and has already been introduced in the field of plastic surgery, dentistry, and orthopedics 4-8. Additionally, we have reported on its clinical usefulness in spinal fusion surgery with a 2-3 month earlier bone fusion9-12. Basic studies also show that PRP administration in rat models of spinal fusion led to a significantly faster bone union without any complications9,10. However, one of the possible barriers to the clinical applications of fresh PRP is its short half-life of merely several hours. To overcome such issues, the use of freeze-dried PRP (FD-PRP) has been suggested and developedv. In the current article, we reviewed the biological features of FD-PRP, confirmed by in vivo and in vitro animal experiments by introducing our associated basic studies.

Basic experimental conditions and Ethics issues in the related researches

Basic experiments included in the current review article used male Sprague-Dawley rats or partly human blood samples. All of the protocols for experimental procedures were approved by the ethics committees of our institution and followed the National Institutes of Health Guidelines for the Care and Use of Laboratory Animals (2010 revision)

Fresh- and FD-PRP preparation and biological properties 14-16

PRP has been reported to contain a large number of growth factors and to have a role in promoting tissue regeneration17-19. In our previous studies, we evaluated and confirmed the biological properties of fresh- and FD-PRP. Fig.1 shows how fresh PRP and FD-PRP are prepared using human autologous whole blood20

The procedure for PRP preparation using animals was as follows: after the donor rats were anesthetized, fresh whole blood was obtained transcardially andcentrifuged at 1500 rpm for 10 minutes. Subsequently, the plasma fraction was separated from the red blood cells and further centrifuged at 3000 rpm for 10 minutes to pellet the platelets as previously described. Pelleted platelets were collected and separated from the supernatant platelet-poor plasma (PPP) . PRP was generated by mixing the platelets with 2.5-mL PPP. Test tubes containing aliquoted PRP were then rotated in an ethanol bath at -60℃ for membranous freezing (preliminary freezing) and then immediately frozen at -30℃ for 4 h. Tubes were then attached to a vacuum freeze-dryer to complete the process and stored for 8 weeks at 4℃ to maintain FD-PRP in a powdery state 16. Prior to the experiments, we resuspended FDPRP powder in distilled water. To avoid any changes in component concentrations, the weight after dissolving was matched to the weight before freeze-drying. FDPRP was activated by adding calcium chloride solution and thrombin solution to the sample.

One of the studies showed that FD-PRP contained a significant number of platelets, in fact 4.9 times that of whole blood16,20. Furthermore, enzymelinked immunosorbent assay (ELISA) showed that concentrations of platelet-derived growth factor BB (PDGF-BB) and transforming growth factor β1 (TGF- β1) were significantly higher in fresh PRP and FD-PRP than in whole blood16

Fig. 1

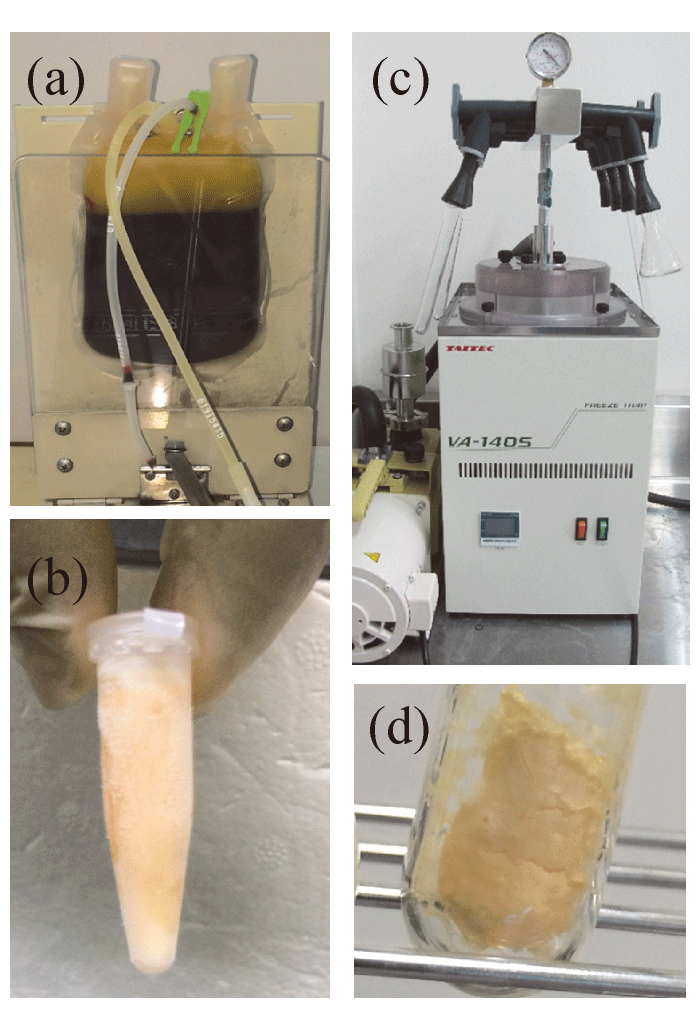

Fig.1 PRP preparation using human blood20.

(a) PRP was sequestrated from the supernatant of the centrifuged whole blood.

(b) PRP frozen at -80℃

(c, d) Freeze-dried PRP was made into powder form using a freeze dryer

II.In vivo evaluation of the efficacy of FDPRP in bone fusion in animal lumbar posterolateral fusion models 16

The efficacy in bone fusion was confirmed using animal spinal fusion modelsv. Posterolateral fusion (PLF) was performed in rats (Fig.2) and then animals were divided into five experimental groups: one sham group and four experimental groups identified by the graft materials: artificial bone group (artificial bonealone) , autologous bone group, FD-PRP (artificial bone+FD-PRP) group, and human recombinant bone morphogenetic protein 2 (BMP) +artificial bone group as a positive control 16. Refit® (Hoya Corporation, Tokyo, Japan) was used as the artificial bone graft substitute, which is also used in clinical spine surgery.

The FD-PRP group used a mixture of 0.5 mL Refit and 0.5 mL gelled-activated FD-PRP (Fig.2 (b) and 2 (c)) . In the BMP group, 0.5 mL Refit and 5 μg of BMP (Sigma-Aldrich Corporation, St. Louis, MO, USA) were mixed and transplanted21,22. In the autologous bone group, rats were implanted with ground spinous processes of T10-L2. The posterolateral lumbar spine in each rat was exposed through a midline skin incision, followed by two paramedian fascial incisions to expose the lamina and the transverse processes of L4-L6 (Fig.2 (d))

Radiological evaluation showed that FD-PRP combined with artificial bone significantly accelerated bone fusion comparable to BMP (Fig.3) . Histological evaluation showed trabecular bone formation with a more tangled bony structure and many thin branches at the early stage of 4 weeks after surgery with comparable rigidity to autologous bone, indicating that bone fusion induced using FD-PRP showed different structure in bone fusion (Fig.4) . Biomechanical tests showed that the harvested spinal column from the FD-PRP group showed significantly stronger rigidity compared to that of the artificial bone-alone group and slightly inferior, although not significantly, compared to the autologous bone group (Fig.5) . Thus, FD-PRP enables earlier bone union with an increased amount of bone formation and trabecular bone remodeling with considerable rigidity.

Fig. 2

Fig. 2

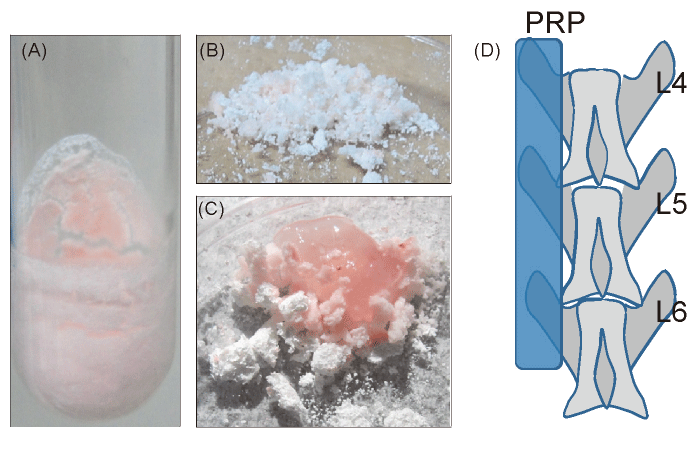

(a) FD-PRP preparation16. FD-PRP is in powder form and can be dissolved in distilled water to the same concentration of fresh PRP.

(b) Artificial bone is crushed into powder.

(c) FD-PRP is mixed with the powdered artificial bone, followed by activation using thrombin and calcium chloride before use.

(d) Schema of the spine (transplantation site) . The graft material was implanted over the transverse processes of L4-L6.

Fig. 3

Fig. 3Anteroposterior radiographs of the spinal segment of the platelet-rich plasma group 4 weeks after surgery16.

(a) Sham group

(b) Artificial bone-alone group

(c) Autologous bone group

(d) Artificial bone+FD-PRP group

(e) Artificial bone+BMP group

FD-PRP and BMP groups showed greater bone formation compared with the autologous bone group.

Fig. 4

Fig.4 Histological images of trabecular bone16.

(a) Artificial bone-alone group

(b) Autologous bone group

(c) Artificial bone+fresh PRP group

(d) Artificial bone+FD-PRP group

(e) Artificial bone+BMP group

Trabecular bone formation of the FD-PRP group consisted of a tangled structure with more thin branches, compared to the autologous bone group. Trabecular bone formation is similar to that of the BMP group.

Fig. 5

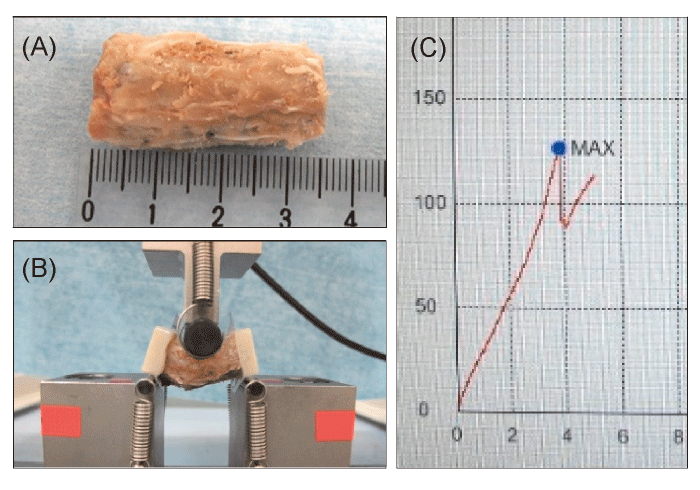

Fig. 5Mechanical strength evaluation: three-point bending test 16.

(a) Harvested lumbar spine (L4-L6)

(b) Three-point bending

(c) Representative plotting for initial peak pressure measurement.

III.Biological activity of long-term-stored FD-PRP20

Previous work shows that the activity of FD-PRP is maintained after an 8-week long-term-storage20. PRP prepared from human whole blood was tested to assess its platelet activation features as well as growth factor content after 8-week preparation20. Assessment of activated platelets using flow cytometry showed a platelet activation of about 80%, which did not differ between the freeze-drying and pre-activation conditions (Fig.6) 20. An antibody array detected growth factors such as PDGF (AA, AB, BB) , IGFBP-2, VEGF, TGF-ß, EGF and M-CSFR in fresh PRP (Fig.7 (a)) . If stored at room temperature for 8 weeks, almost none of the growth factors were detected (Fig.7 (b)) . However, thinner but significant spots were detected in the PRP frozen after preparation (Fig.7 (c)) . Results showed that in FD-PRP, almost all growth factors were preserved to a considerable level compared with those in fresh PRP (Fig.7 (d)) . These assays showed that storage of PRP at room temperature led to a significant decrease in platelet count while frozen/freeze-drying maintained it for about 8 weeks. Platelet activation properties were also maintained when the activated PRP was stored in frozen or free-dried states. Compared with the frozen PRP, the FD-PRP showed a more significant preservation of growth factors, comparable to that of the fresh one.

Fig. 4

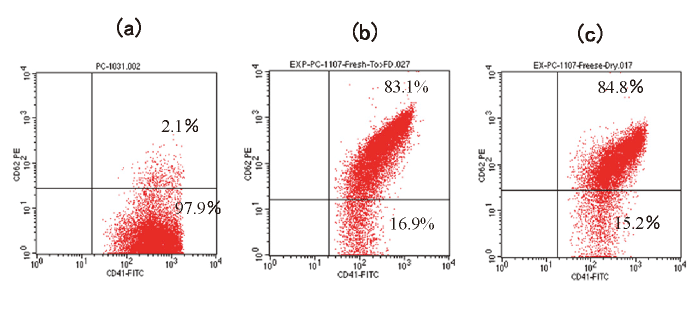

Fig.6 Assessment of activated platelets using flow cytometry. X axis represents anti-CD41a antibody (platelet marker) and the Y axis represents anti-CD62P antibody (marker for activated platelets) 20.

(a) Fresh PRP immediately after preparation (before activation) .

(b) Activated fresh PRP

(a, c) Activated freeze dried PRP (8 weeks after preparation)

The percentages of activated platelets in freeze dried samples after 8 weeks were almost the same as in fresh PRP.

Fig. 7

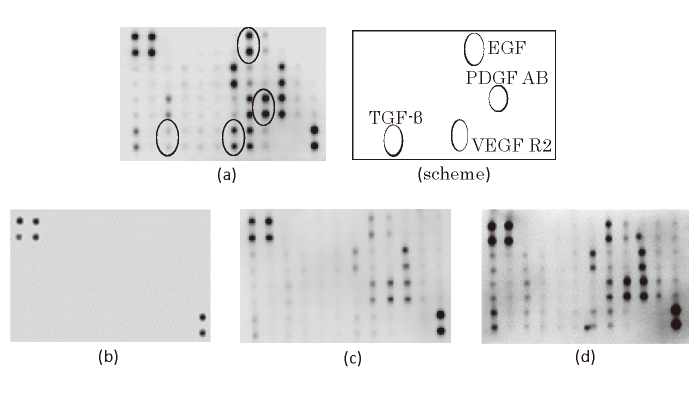

Fig. 7Growth factor detection using antibody arrays 20.

(a) Fresh PRP
Growth factors such as PDGF AB, VEGF R2, TGF-β, and EGF were detected as spots. Each detailed location is shown in the scheme.

(b) PRP in RT stored for 8 weeks
Almost all growth factors disappeared.

(c) Frozen PRP stored for 8 weeks
Thinner but significant spots were detected.

(d) Freeze dried PRP stored for 8 weeks
Almost all growth factors were observed as robust spots.

In vitro evaluation using osteoblasts

We also reported that PDGFs in FD-PRP retain their activity, promoting the proliferation of osteoblasts via the PDGFR-mediated ERK signaling pathway. This activity is preserved even after freeze drying and 4-week storage, resulting in two-fold proliferation of osteoblasts15

IV.Safety and availability of PRP

The fact that FD-PRP showed comparable bone union ability to that of BMP is important, particularly given that BMP is expensive, and thus unavailable in some countries, as well as the fact that it has associated risks such as tumor formation and excessive inflammation23-25. Compared to BMP, PRP is safer because it is made from autologous blood and its clinical use has few significant complications6. Considering that growth factors are still preserved in the long-term stored FD-PRP, it should be useful if it is prepared before the surgery, or even if it is made from other origins such as induced pluripotent stem cells.

In conclusion, FD-PRP shows potential for the purpose of accelerating bone union, derived from a preserved and enhanced concentration of bone unionrelated growth factors by achieving increased and enhanced structure of the remodeled bone. FD-PRP could be of great use in our ageing society, which leads to an increased number of spinal pathology patients requiring spinal fusion surgery.


I thank all the investigators for collaborations on these works in our department. I especially appreciate Professor Seiji Ohtori for critically reading this manuscript. This work was supported by a JSPS KAKENHI grants (26462228 and 18K09093) .

Conflict of interest



  • 1) Videbaek TS, Christensen FB, Soegaard R, Hansen ES, Hoy K, Helmig P, Niedermann B, Eiskjoer SP, Bunger CE. (2006) Circumferential fusion improves outcome in comparison with instrumented posterolateral fusion: longterm results of a randomized clinical trial. Spine (Phila Pa 1976) 31, 2875-80.
  • 2) Madan SS, Harley JM, Boeree NR(. 2003) Circumferential and posterolateral fusion for lumbar disc disease. Clin Orthop Relat Res 114-23.
  • 3) Fritzell P, Hagg O, Wessberg P, Nordwall A, Swedish Lumbar Spine Study G. (2002) Chronic low back pain and fusion: a comparison of three surgical techniques: a prospective multicenter randomized study from the Swedish lumbar spine study group. Spine (Phila Pa 1976) 27, 1131-41.
  • 4) Crovetti G, Martinelli G, Issi M, Barone M, Guizzardi M, Campanati B, Moroni M, Carabelli A. (2004) Platelet gel for healing cutaneous chronic wounds. Transfus Apher Sci 30, 145-51.
  • 5) Anitua E, Andia I, Ardanza B, Nurden P, Nurden AT. (2004) Autologous platelets as a source of proteins for healing and tissue regeneration. Thromb Haemost 91, 4-15.
  • 6) Marx RE, Carlson ER, Eichstaedt RM, Schimmele SR, Strauss JE, Georgeff KR. (1998) Platelet-rich plasma: Growth factor enhancement for bone grafts. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 85, 638-46.
  • 7) Li H, Zou X, Xue Q, Egund N, Lind M, Bunger C. (2004) Anterior lumbar interbody fusion with carbon fiber cage loaded with bioceramics and platelet-rich plasma. An experimental study on pigs. Eur Spine J 13, 354-8.
  • 8) Sethi PM, Miranda JJ, Kadiyala S, Patel T, Panjabi M, Troiano N, Friedlaender GE. (2008) Evaluation of autologous platelet concentrate for intertransverse process lumbar fusion. Am J Orthop (Belle Mead NJ) 37, E84- 90.
  • 9) Kamoda H, Ohtori S, Ishikawa T, Miyagi M, Arai G, Suzuki M, Sakuma Y, Oikawa Y, Kubota G, Orita S, Eguchi Y, Yamashita M, Yamauchi K, Inoue G, Hatano M, Takahashi K. (2013) The effect of platelet-rich plasma on posterolateral lumbar fusion in a rat model. J Bone Joint Surg Am 95, 1109-16.
  • 10) Kamoda H, Yamashita M, Ishikawa T, Miyagi M, Arai G, Suzuki M, Eguchi Y, Orita S, Sakuma Y, Oikawa Y, Inoue G, Ozawa T, Toyone T, Wada Y, Takahashi K, Ohtori S. (2012) Platelet-rich plasma combined with hydroxyapatite for lumbar interbody fusion promoted bone formation and decreased an inflammatory pain neuropeptide in rats. Spine (Phila Pa 1976) 37, 1727-33.
  • 11) Kubota G, Kamoda H, Orita S, Inage K, Ito M, Yamashita M, Furuya T, Akazawa T, Shiga Y, Ohtori S. (2018) Efficacy of Platelet-Rich Plasma for Bone Fusion in Transforaminal Lumbar Interbody Fusion. Asian Spine J 12, 112-8.
  • 12) Kubota G, Kamoda H, Orita S, Yamauchi K, Sakuma Y, Oikawa Y, Inage K, Sainoh T, Sato J, Ito M, Yamashita M, Nakamura J, Suzuki T, Takahashi K, Ohtori S. (2017) Platelet-rich plasma enhances bone union in posterolateral lumbar fusion: A prospective randomized controlled trial. Spine J.
  • 13) Pietramaggiori G, Kaipainen A, Czeczuga JM, Wagner CT, Orgill DP. (2006) Freeze-dried platelet-rich plasma shows beneficial healing properties in chronic wounds. Wound Repair Regen 14, 573-80.
  • 14) Aghaloo TL, Moy PK, Freymiller EG. (2002) Investigation of platelet-rich plasma in rabbit cranial defects: A pilot study. J Oral Maxillofac Surg 60, 1176-81.
  • 15) Kinoshita H, Orita S, Inage K, Yamauchi K, Abe K, Inoue M, Norimoto M, Umimura T, Eguchi Y, Fujimoto K, Shiga Y, Kanamoto H, Aoki Y, Furuya T, Suzuki M, Akazawa T, Takahashi K, Ohtori S. (2019) Freeze-dried platelet-rich plasma induces osteoblast proliferation via platelet-derived growth factor receptor-mediated signal transduction. Asian Spine J[ Epub ahead of print].
  • 16) Shiga Y, Orita S, Kubota G, Kamoda H, Yamashita M, Matsuura Y, Yamauchi K, Eguchi Y, Suzuki M, Inage K, Sainoh T, Sato J, Fujimoto K, Abe K, Kanamoto H, Inoue M, Kinoshita H, Aoki Y, Toyone T, Furuya T, Koda M, Takahashi K, Ohtori S. (2016) Freeze-Dried Platelet-Rich Plasma Accelerates Bone Union with Adequate Rigidity in Posterolateral Lumbar Fusion Surgery Model in Rats. Sci Rep 6, 36715.
  • 17) Eppley BL, Woodell JE, Higgins J. (2004) Platelet quantification and growth factor analysis from plateletrich plasma: implications for wound healing. Plast Reconstr Surg 114, 1502-8.
  • 18) Okuda K, Kawase T, Momose M, Murata M, Saito Y, Suzuki H, Wolff LF, Yoshie H. (2003) Platelet-rich plasma contains high levels of platelet-derived growth factor and transforming growth factor-beta and modulates the proliferation of periodontally related cells in vitro. J Periodontol 74, 849-57.
  • 19) Weibrich G, Kleis WK, Hafner G, Hitzler WE. (2002) Growth factor levels in platelet-rich plasma and correlations with donor age, sex, and platelet count. J Craniomaxillofac Surg 30, 97-102.
  • 20) Shiga Y, Kubota G, Orita S, Inage K, Kamoda H, Yamashita M, Iseki T, Ito M, Yamauchi K, Eguchi Y, Sainoh T, Sato J, Fujimoto K, Abe K, Kanamoto H, Inoue M, Kinoshita H, Furuya T, Koda M, Aoki Y, Toyone T, Takahashi K, Ohtori S. (2017) Freeze-Dried Human Platelet-Rich Plasma Retains Activation and Growth Factor Expression after an Eight-Week Preservation Period. Asian Spine J 11, 329-36.
  • 21) Arosarena O, Collins W. (2005) Comparison of BMP-2 and -4 for rat mandibular bone regeneration at various doses. Orthod Craniofac Res 8, 267-76.
  • 22) Bae HW, Zhao L, Kanim LE, Wong P, Marshall D, Delamarter RB. (2013) Bone marrow enhances the performance of rhBMP-2 in spinal fusion: a rodent model. J Bone Joint Surg Am 95, 338-47.
  • 23) Bono CM, Wetzel FT, (2013) North American Spine Society Executive Committee ebtNASSSoB. Black, white, or gray: how different (or similar) are YODA and the The Spine Journal reviews of BMP-2? Spine J 13, 1001-5.
  • 24) Glassman SD, Gum JL, Crawford CH, 3rd, Shields CB, Carreon LY. (2011) Complications with recombinant human bone morphogenetic protein-2 in posterolateral spine fusion associated with a dural tear. Spine J 11, 522-6.
  • 25) Mannion RJ, Nowitzke AM, Wood MJ. (2011) Promoting fusion in minimally invasive lumbar interbody stabilization with low-dose bone morphogenic protein-2-but what is the cost? Spine J 11, 527-33.
